Liquid Pressure Cell 20PL25CB6

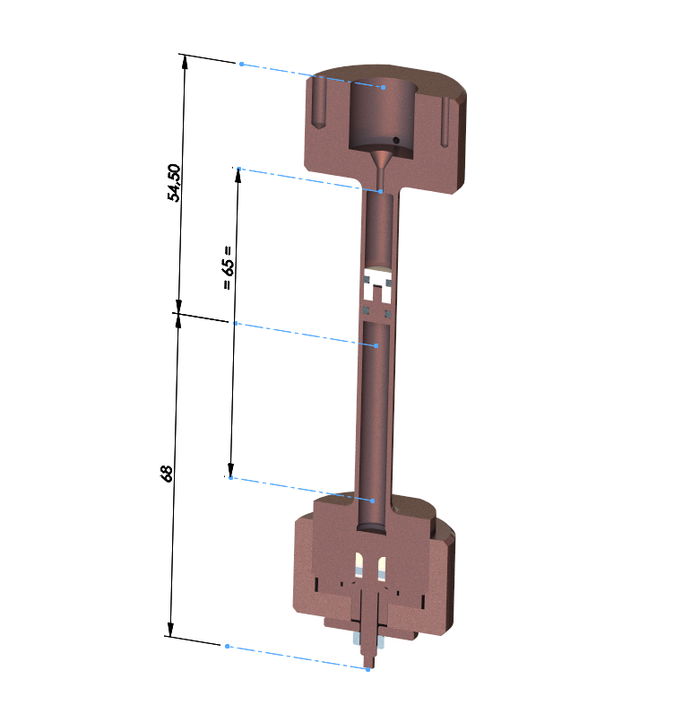

This cell is made from hardened CuBe and provides a Ø6 x 60 mm3 sample volume, i.e. 1.7 ml. A separator may be used when the amount of available sample is low (1.2 ml required).
The pressure is generated using a hydraulic press with or without separator. The maximum pressure is 250 MPa, i.e. 2.5 kbar up to 300°C.
