Cryomagnet 256CRHV41

10T vertical for TOF instruments

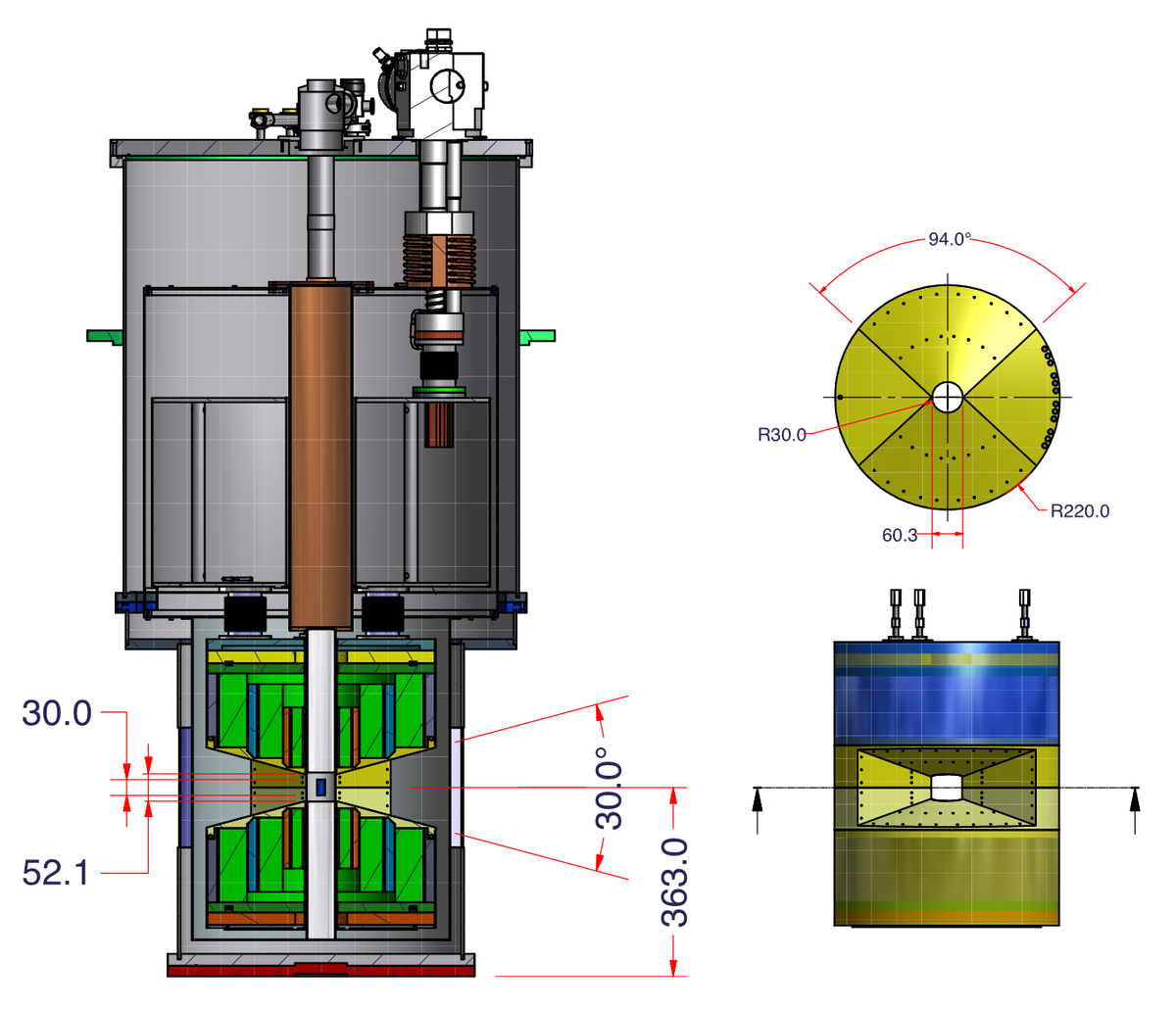

The central homogeneity of the magnet is better than 5% across a Ø15 x 30 mm3 volume. The configuration provides a ±15° clear vertical access to a Ø10 mm x 30 mm height sample, 1 mm Cd thick plates included. The 90° horizontal opening takes account of the 1 mm thick Cd plates fixed to the pillars of the magnet.

Type	ILL VTI
Tmin	1.5K
Tmax	300K
Instrument	IN5, not yet tested on PANTHER and SHARPER

Sensor Samp. #1	Cernox CX1050
Serial number	X121622
Calibration	ILL #2017-6
Interpol. Table	Download

Sensor Magnet Bottom	Cernox CX1050
Serial number	X100797
Calibration	LakeShore
Interpol. Table	Download

Sensor Regul.	Cernox CX1050
Serial number	X139473
Calibration	ILL #2018-3
Interpol. Table	Download

Sensor Cryocooler	Cernox CX1050
Serial number	X100799
Calibration	LakeShore
Interpol. Table	Download

Sensor Magnet Top	Cernox CX1050
Serial number	X100798
Calibration	LakeShore
Interpol. Table	Download
