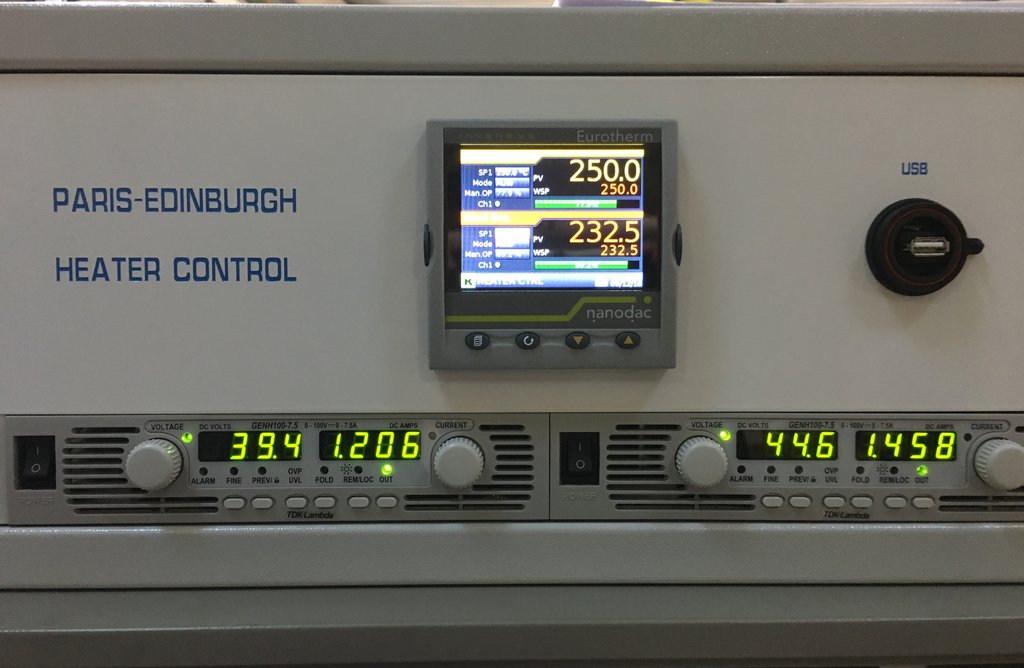

PE Cell Heater Controller

PLC Registers (Eurotherm 2704 Controller)
Description Read Write Address

Temperature of the top anvil (°C)

X

-

40257

Temperature of the bottom anvil (°C)

X

-

40261

Temperature of the top gasket (°C)

X

-

40265

Temperature of the bottom gasket (°C)

X

-

40269

Temperature of the Paris-Edinburgh cell (°C)

X

-

40289

Temperature setpoint of the top anvil (°C)

X

X

40515

Output power delivered to the heater of the top anvil (%)

X

-

40517

Temperature setpoint of the bottom anvil (°C)

X

X

40643

Output power delivered to the heater of the bottom anvil (%)

X

-

40645
