Liquid Pressure Cell 27PL70AL12

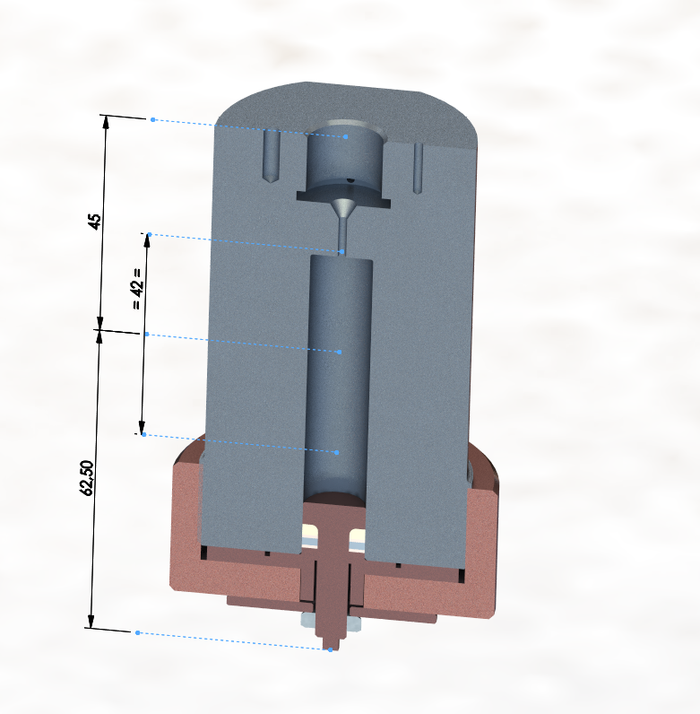

This cell is made from the aluminium alloy 7049A-T6 and provides a Ø12 x 42 mm3 sample volume, i.e. 4.7 ml.
The pressure is generated using a hydraulic press with or without separator. The maximum pressure is 700 MPa, i.e. 7 kbar up to 100°C.
