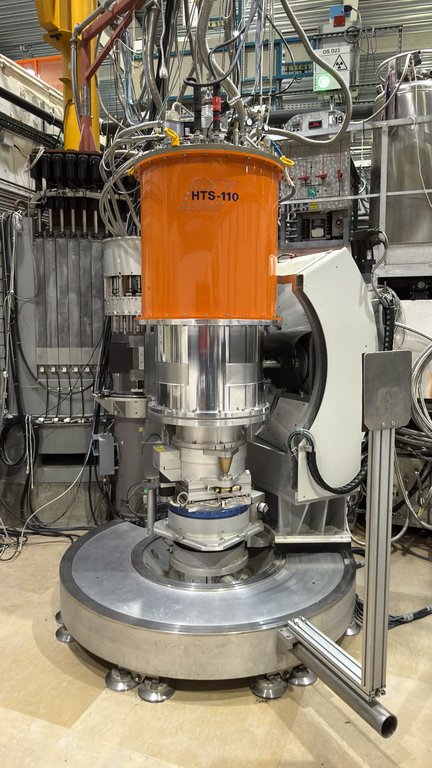

Cryomagnet 283HTHV39

12T vertical asymmetric

Type	High-Tc magnet
Tmin	1.5K
Tmax	300K
Instrument	Pool

Sensor Regul.	Cernox CX1050
Serial number	X177564
Calibration	ILL #2024-1
Interpol. Table	Download

Sensor Samp. #1	Cernox CX1050
Serial number	X177565
Calibration	ILL #2024-1
Interpol. Table	Download

Sensor T2	Cernox CX1050
Serial number	X48378
Calibration	ILL #2025-4
Interpol. Table	Download

Sensor T4	Cernox CX1050
Serial number	X211960
Calibration	ILL #2025-4
Interpol. Table	Download

Sensor T5 thermalisation	Cernox CX1050
Serial number	X213165
Calibration	ILL #2025-4
Interpol. Table	Download

Sensor Stainless Steel Top	Cernox CX1050
Serial number	X217936
Calibration	ILL #2025-4
Interpol. Table	Download

The magnet is protected by a magnet monitor which continuously checks that operating voltages and temperatures do not exceed set limits. This monitor will not allow the power supply to operate until temperatures and voltages fall below the Enable limits. After that, if voltages or temperatures rise above the Disable limits, the monitor sends a disable signal to the power supply and the operating current drops to zero to protect the magnet.

Amps/Tesla conversion	18,347 A/T
Power supply current limits	-221 A	+221 A
Stage 1 cooler temperature limits (T1)	Enable if < 43 K	Disable if > 45 K
Stage 2 cooler temperature limits (T2)	Enable if < 11 K	Disable if > 12 K
Coil pack A temperature limits (T3)	Enable if < 13 K	Disable if > 15 K
Coil pack B temperature limits (T4)	Enable if < 13 K	Disable if > 15 K
Interconnection temperature limits (T5)	Enable if < 14 K	Disable if > 16.5 K
Coil differential voltage limits	Enable if < 2 mV	Disable if > 200 mV
Coil-pack A differential voltage limits	Enable if < 2 mV	Disable if > 2000 mV
Coil-pack B differential voltage limits	Enable if < 2 mV	Disable if > 4800 mV
Current lead differential voltage limits	Enable if < 2 mV	Disable if > 5 mV
