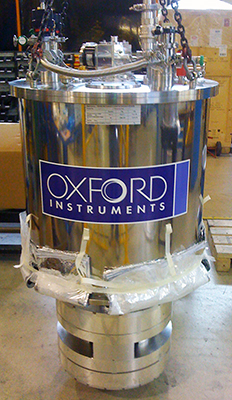

Cryomagnet 203OXHV39

10T vertical asymmetric with recondensation unit

The magnetic field homogeneity is 0.5% in a Ø10mm sphere centered on the beam axis. The maximum sample volume is Ø38 x 30 mm with ±5° vertical access.

Type	ILL VTI
Tmin	1.5K
Tmax	300K
Instrument	Pool

Sensor Regul.	Cernox CX1050
Serial number	X48345
Calibration	ILL 2007-9
Interpol. Table	download (LK336) download (LK340)

Sensor Samp.	Cernox CX1050
Serial number	X48346
Calibration	ILL 2007-9
Interpol. Table	download (LK336) download (LK340)

Sensor Magnet	-
Serial number	-
Calibration	-
Interpol. Table	-

IPS-120 Test 07 superconducting magnet parameters (Test 06 magnet system configuration set to 1)

S01	Amps/Tesla conversion	112.59 A -> 10 T
S02	Power supply current limit	112.59 A
S03	Lower (most negative) safe current	-112.59 A
S04	Upper (most positive) safe current	112.59 A
S05	Current breakpoints for rate limiting	b01: 80 A b02: 100 A b03: 112.59 A
S06	Limiting rate for leads, magnet at zero	240 A/min everywhere
S07	Limiting rate for leads, magnet at field	120 A/min everywhere
S08	Limiting rate for magnet, "FASt" run	r01: 3 A/min between 0 and 80 A r02: 2 A/min between 80 and 100 A r03: 1 A/min between 100 and 112.59 A
S09	Limiting rate for magnet, "SLO " (slow) run	r01: 3 A/min between 0 and 80 A r02: 2 A/min between 80 and 100 A r03: 1 A/min between 100 and 112.59 A
S10	Software voltage limit	12.49 V
S11	Magnet inductance	119.3 Henry according to Oxford Instruments
S15	Switch heater current	60 mA
