D17 Neutron reflectometer with horizontal scattering geometry

Magnetic domains and off-specular scattering

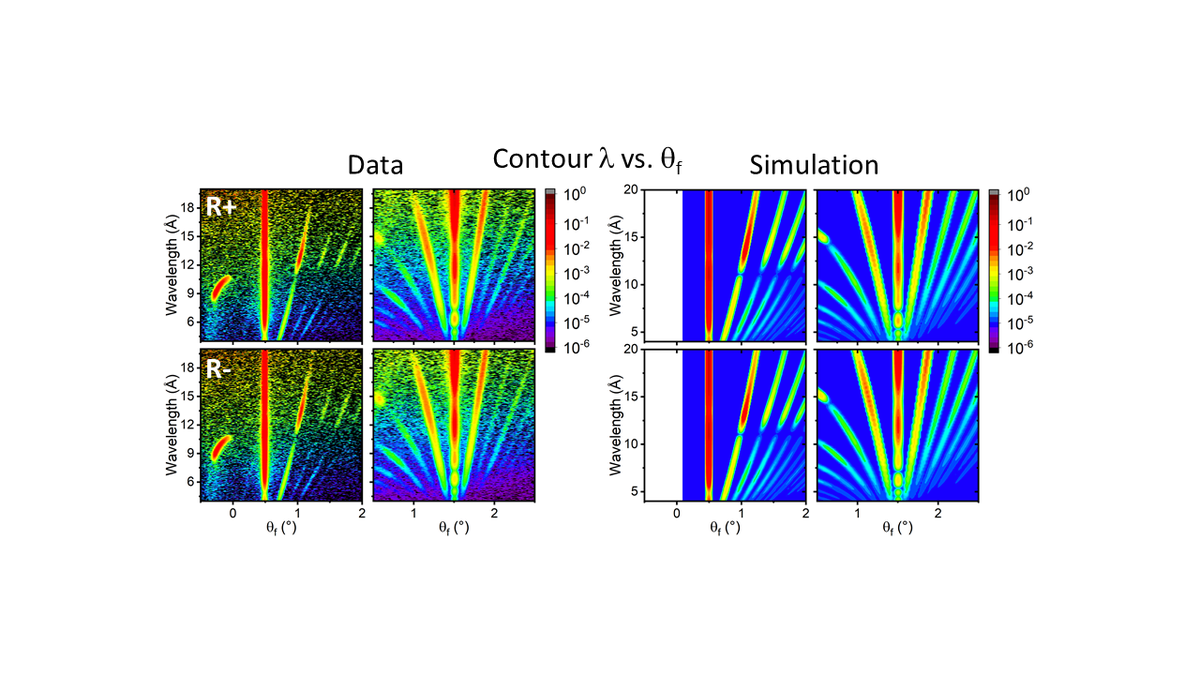

Polarisation-dependent specular and off-specular scattering from a 5 micrometer magnetic domain pattern

Magnetic domains and off-specular scattering

D17 in TOF-polarised mode is well-adapted for measurements of magnetic samples.

The wide angle coverage of the multidetector allows the detection of magnetic off-specular scattering simultaneously to the specular reflectivity.

In this example, the magnetic scattering from a 5 μm domain pattern in head-to-head configuration was investigated to resolve details of the domain structure and internal magnetizations.

(ILL20SA233) Magnetic Structure of Ion-Beam Imprinted Stripe Domains Determined by Neutron Scattering. T. Saerbeck, H. Huckfeldt, B.P. Toperverg,A. Ehresmann. Nanomaterials 10, 752 (2020).
