Examples

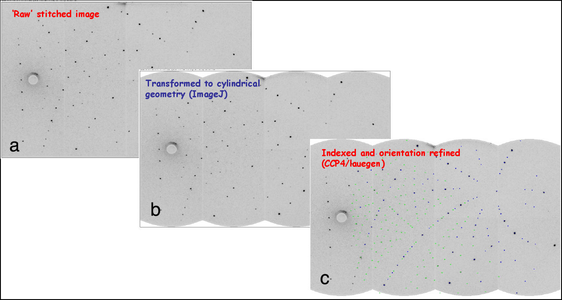

First tests. The figure shows the raw stitched Laue pattern (a) obtained with a ruby crystal in 20s of acquisition time. Figures (b) and (c) are the transformed to cylindrical geometry and indexed patterns respectively.
First tests. The figure shows the raw stitched Laue pattern (a) obtained with a ruby crystal in 20s of acquisition time. Figures (b) and (c) are the transformed to cylindrical geometry and indexed patterns respectively.

Working with CYCLOPS

The movie below was recorded during the first tests of CYCLOPS in june 2009.
The test sample is a ruby crystal in the form of a small sphere of 3 mm in diameter. Ten seconds of data acquisition are enough to see that this crystal is twinned.

Movie: file size 2.8 Mb, duration: 13,41s, format: MPEG4
