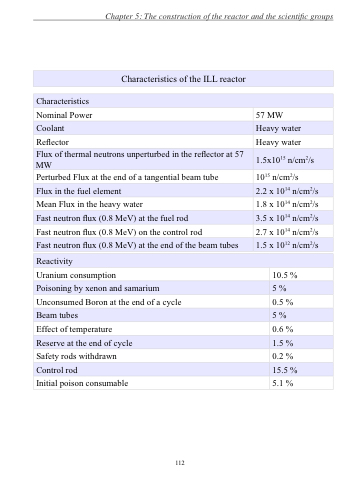

Characteristics of the ILL reactor
Characteristics
Nominal Power
57 MW
Coolant
Heavy water
Reflector
Heavy water
Flux of thermal neutrons unperturbed in the reflector at 57 MW
1.5x1015 n/cm2/s
Perturbed Flux at the end of a tangential beam tube
1015 n/cm2/s
Flux in the fuel element
2.2 x 1014 n/cm2/s
Mean Flux in the heavy water
1.8 x 1014 n/cm2/s
Fast neutron flux (0.8 MeV) at the fuel rod
3.5 x 1014 n/cm2/s
Fast neutron flux (0.8 MeV) on the control rod
2.7 x 1014 n/cm2/s
Fast neutron flux (0.8 MeV) at the end of the beam tubes
1.5 x 1012 n/cm2/s
Reactivity
Uranium consumption
10.5 %
Poisoning by xenon and samarium
5%
Unconsumed Boron at the end of a cycle
0.5 %
Beam tubes
5%
Effect of temperature
0.6 %
Reserve at the end of cycle
1.5 %
Safety rods withdrawn
0.2 %
Control rod
15.5 %
Initial poison consumable
5.1 %
