What is WinPLOTR? WinPLOTR is a program to plot powder diffraction
patterns. It can be used to plot raw or normalized data files coming from
neutron and X-ray diffractometers (conventional or synchrotron radiation)
as well as Rietveld files created by the FullProf refinement program. WinPLOTR
can also be used as a Graphical User Interface for programs used frequently
in powder diffraction data analysis (ex: FullProf,DicVol ...) WinPLOTR has been developped to run on PC's with a 32-bit Microsoft Windows operating system. WinPLOTR supports Windows 9x/NT/XP. WinPLOTR has been build up with Lahey Fortran 95 compiler, using the Windows facilities of RealWin.
Features:
Screenshots:

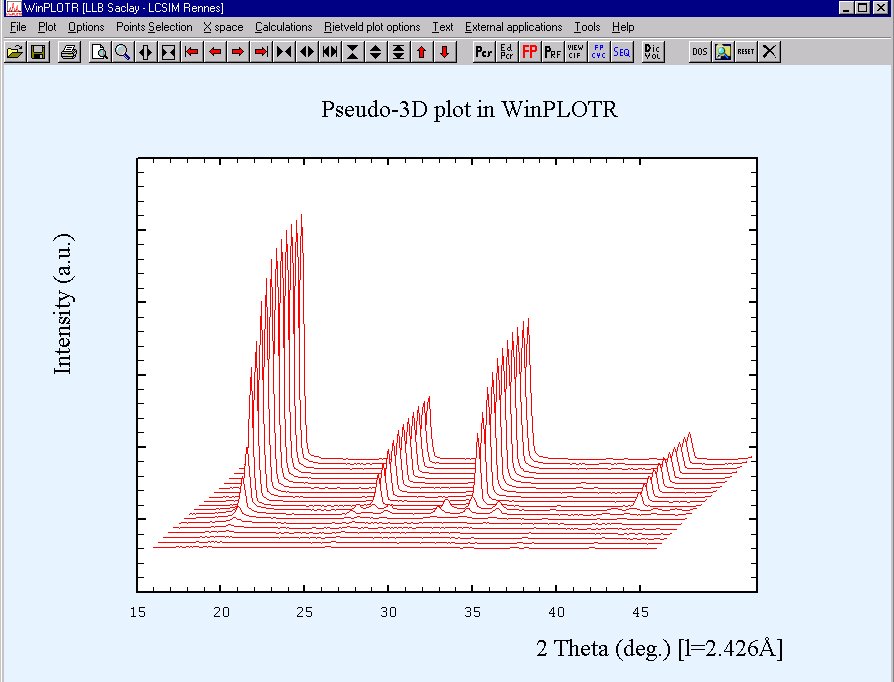

3D plot of neutron powder diffraction patterns in the 1.5 - 30 K temperature range, showing the appearance of two magnetic phase transitions (incommensurate and commensurate propagation wave vectors). diffractometer: G41 (LLB) wave=2.426A

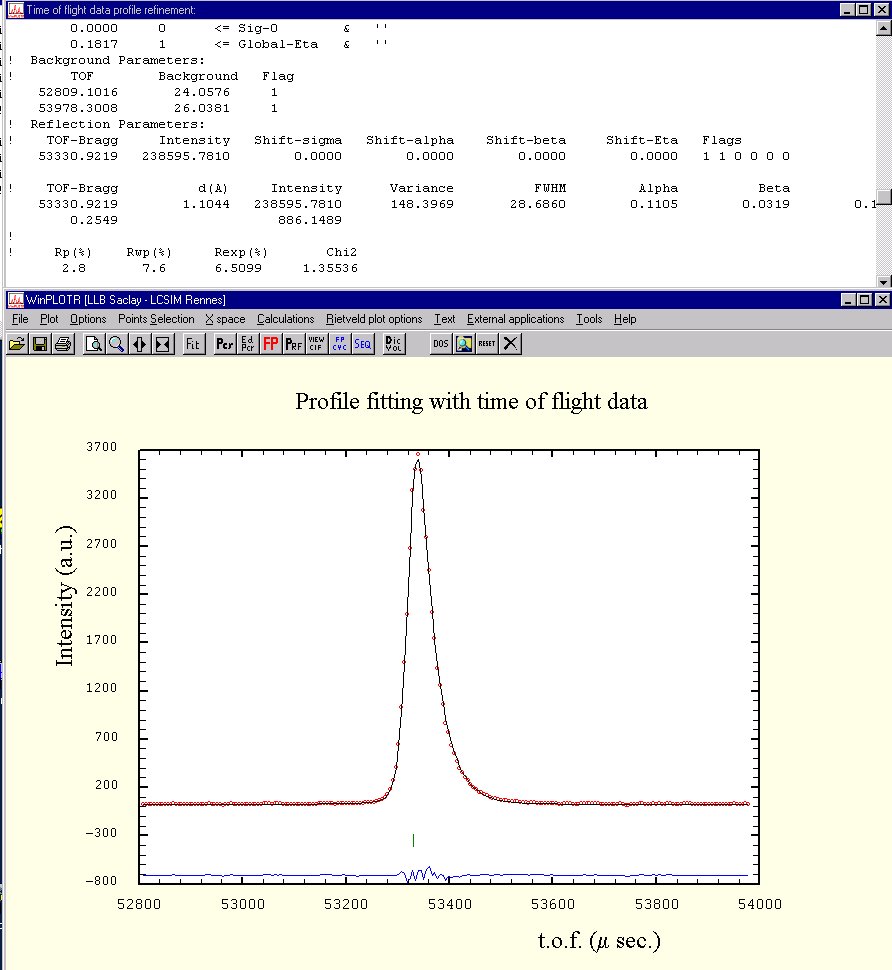

Profile fitting with time of flight data |
