Cryostat 69ILHV25

Dual-exchanger, Vanadium tail

Type	Orange Ø50
Tmin	1.5K
Tmax	320K
Instrument	D1B

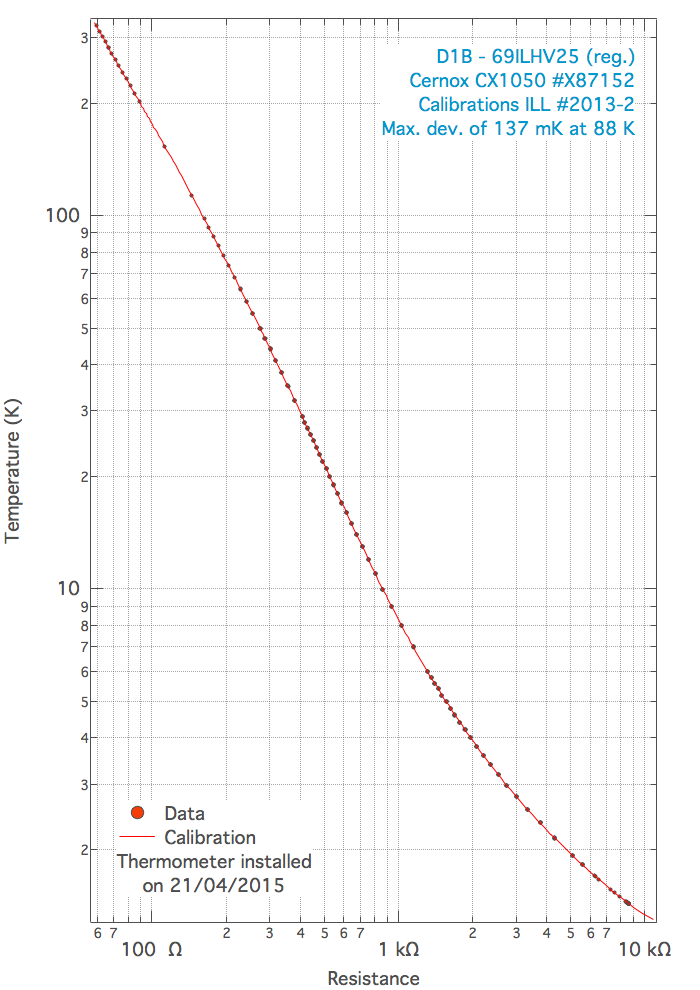

Sensor Regul.	Cernox CX1050
Serial number	X87152
Calibration	ILL 2013-2
Interpol. Table	download (LK336) download (LK340)

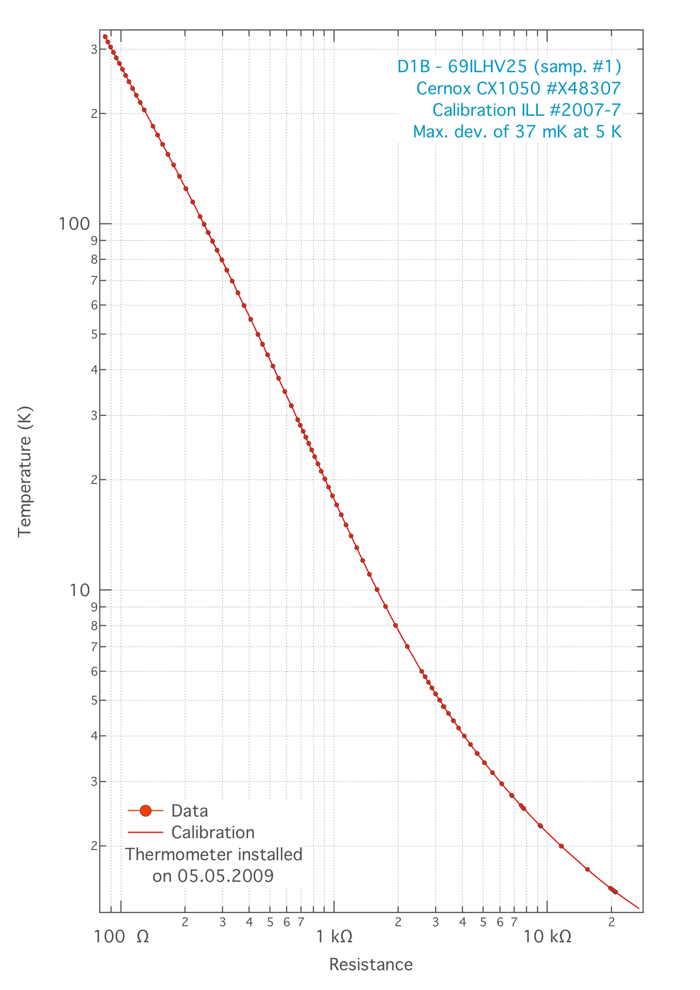

Sensor Samp. #1	Cernox CX1050
Serial number	X48307
Calibration	ILL 2007-7
Interpol. Table	download

Sensor Samp. #2	PT0 / C18
Serial number	-
Calibration	-
Interpol. Table	-

Sensor Samp. #3	PT0 / C14
Serial number	-
Calibration	-
Interpol. Table	-
