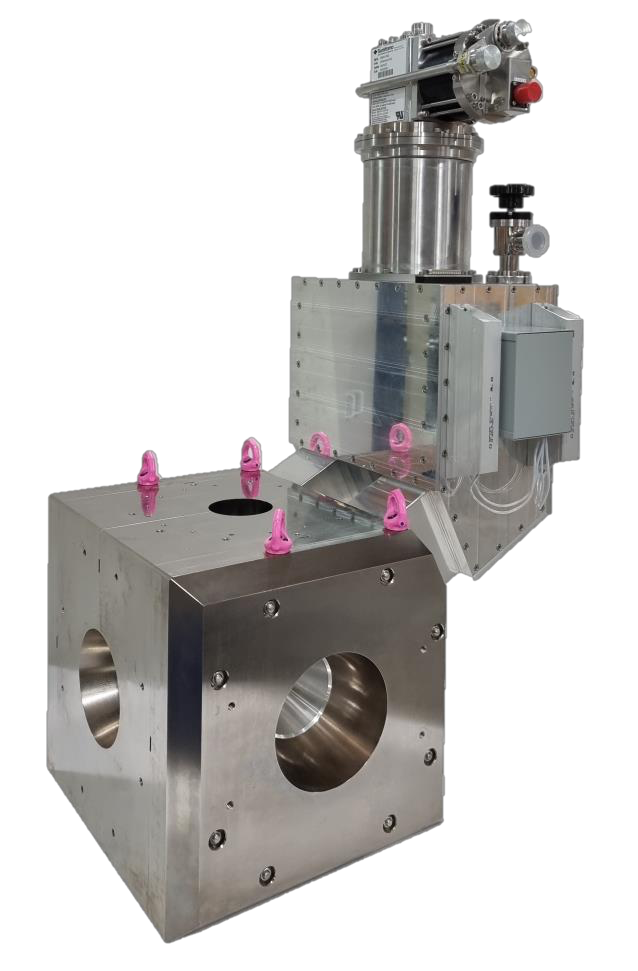

Cryomagnet 268HTCC81

3T horizontal

Type	Dry high-Tc magnet
Tmin	1.5K with Cryostat 105ILHV42
Tmax	300K
Instrument	Pool

The magnet is protected by a magnet monitor which continuously checks that operating voltages and temperatures do not exceed set limits. This monitor will not allow the power supply to operate until temperatures and voltages fall below the Enable limits. After that, if voltages or temperatures rise above the Disable limits, the monitor sends a disable signal to the power supply and the operating current drops to zero to protect the magnet.

Amps/Tesla conversion	71.058 A/T
Power supply current limits	-215.0 A	215.0 A
Coil differential voltage limits	Enable if < 1 mV	Disable if > 50 mV
Current lead differential limits	Enable if < 1 mV	Disable if > 2 mV
Stage 1 cooler temperature limits	Enable if < 49 K	Disable if > 50 K
Stage 2 cooler temperature limits	Enable if < 14 K	Disable if > 15 K
Coil pack A temperature limits	Enable if < 17 K	Disable if > 18 K
Coil pack B temperature limits	Enable if < 17 K	Disable if > 18 K
Current	Enable if < 2 A	Disable if > 216 A
