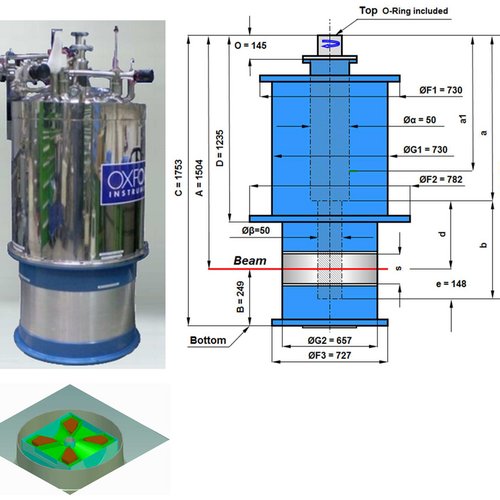

Cryomagnet 258OXHV49

6T horizontal

This horizontal cryomagnet provides large symmetric 45° openings: 2 x 45° cones (parallel field axis) and 2 x 45° wedges (perp. field axis).

IPS-120 Test 07 superconducting magnet parameters (Test 06 magnet system configuration set to 1):

S01	Amps/Tesla conversion	94.93 A -> 6.7 T (but 6 T max field)
S02	Power supply current limit	94.93 A
S03	Lower (most negative) safe current	-150.0 A
S04	Upper (most positive) safe current	149.99 A
S05	Current breakpoints for rate limiting	b01: 70 A b02: 90 A b03: 94.93 A
S06	Limiting rate for leads, magnet at zero	240 A/min everywhere
S07	Limiting rate for leads, magnet at field	240 A/min everywhere
S08	Limiting rate for magnet, "FASt" run	r01: 2.0 A/min between 0 and 70 A r02: 0.5 A/min between 70 and 90 A r03: 0.15 A/min between 90 and 94.93 A
S09	Limiting rate for magnet, "SLO " (slow) run	r01: 2.0 A/min between 0 and 70 A r02: 0.5 A/min between 70 and 90 A r03: 0.15 A/min between 90 and 94.93 A
S10	Software voltage limit	10.00 V
S11	Magnet inductance	111.8 Henry according to Oxford Instruments
S15	Switch heater current	60 mA
