Stick 197ILGI49

Heated double-way gas injection - 200 bar max.

Type	Stick for Orange Ø50
Tmin	1.5K
Tmax	550K
Instrument	Pool

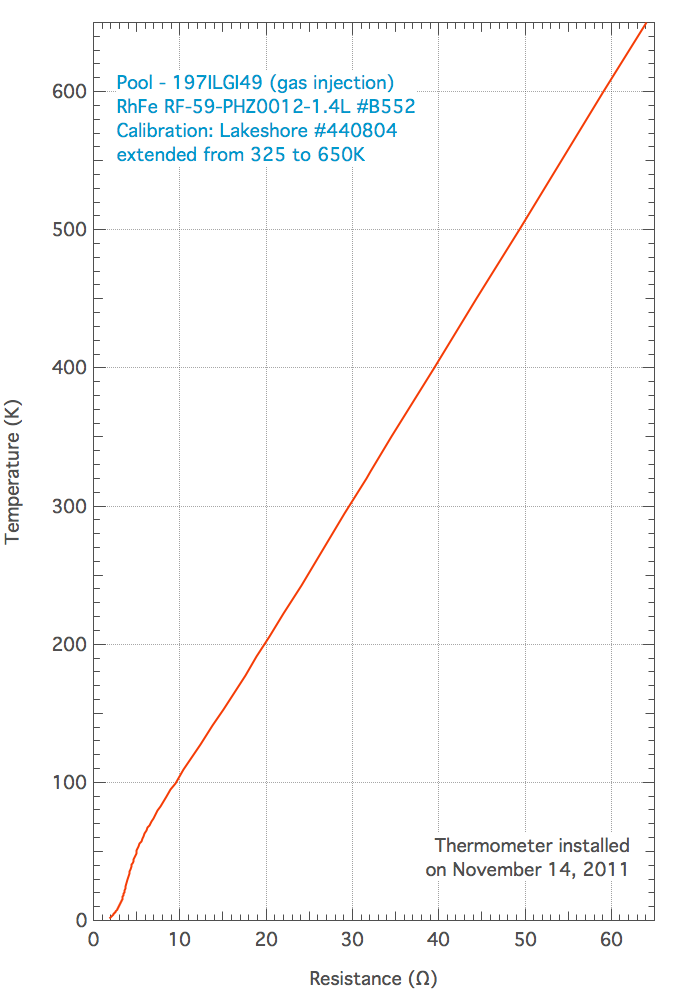

Sensor Samp.	RhFe
Serial number	B552
Calibration	LKS #440804
Interpol. Table	Download

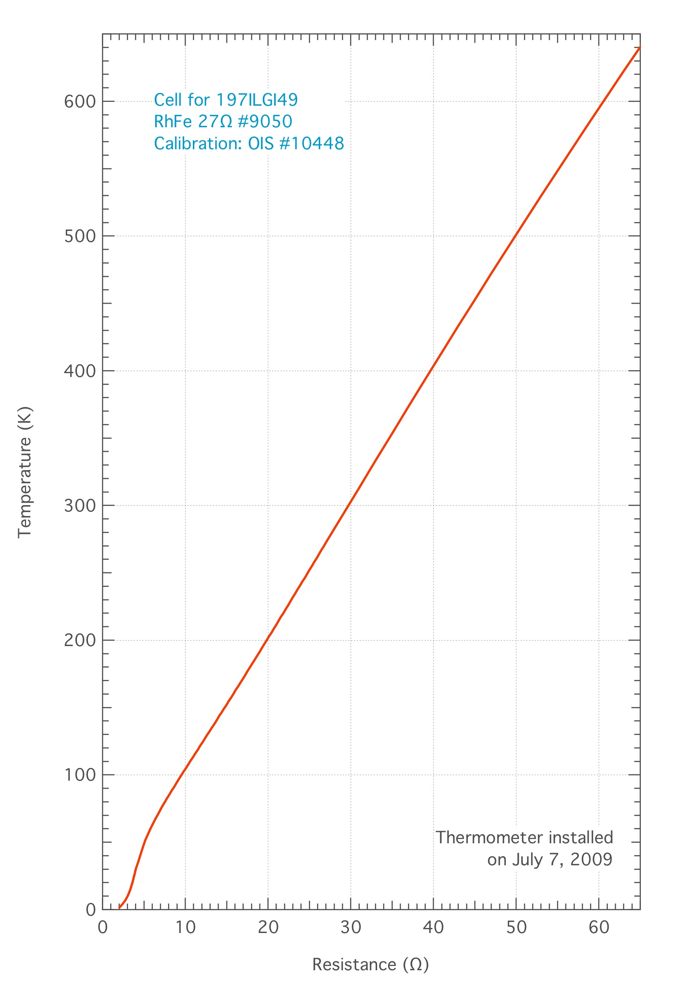

Sensor Cell.	RhFe
Serial number	9050
Calibration	OIS #10448
Interpol. Table	Download
