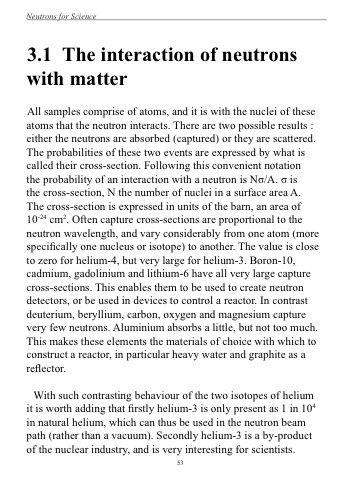

3.1 The interaction of neutrons with matter
All samples comprise of atoms, and it is with the nuclei of these atoms that the neutron interacts. There are two possible results : either the neutrons are absorbed (captured) or they are scattered. The probabilities of these two events are expressed by what is called their cross-section. Following this convenient notation the probability of an interaction with a neutron is Nσ/A. σ is
the cross-section, N the number of nuclei in a surface area A. The cross-section is expressed in units of the barn, an area of 10-24 cm2. Often capture cross-sections are proportional to the neutron wavelength, and vary considerably from one atom (more specifically one nucleus or isotope) to another. The value is close to zero for helium-4, but very large for helium-3. Boron-10, cadmium, gadolinium and lithium-6 have all very large capture cross-sections. This enables them to be used to create neutron detectors, or be used in devices to control a reactor. In contrast deuterium, beryllium, carbon, oxygen and magnesium capture very few neutrons. Aluminium absorbs a little, but not too much. This makes these elements the materials of choice with which to construct a reactor, in particular heavy water and graphite as a reflector.
With such contrasting behaviour of the two isotopes of helium it is worth adding that firstly helium-3 is only present as 1 in 104 in natural helium, which can thus be used in the neutron beam path (rather than a vacuum). Secondly helium-3 is a by-product of the nuclear industry, and is very interesting for scientists.
